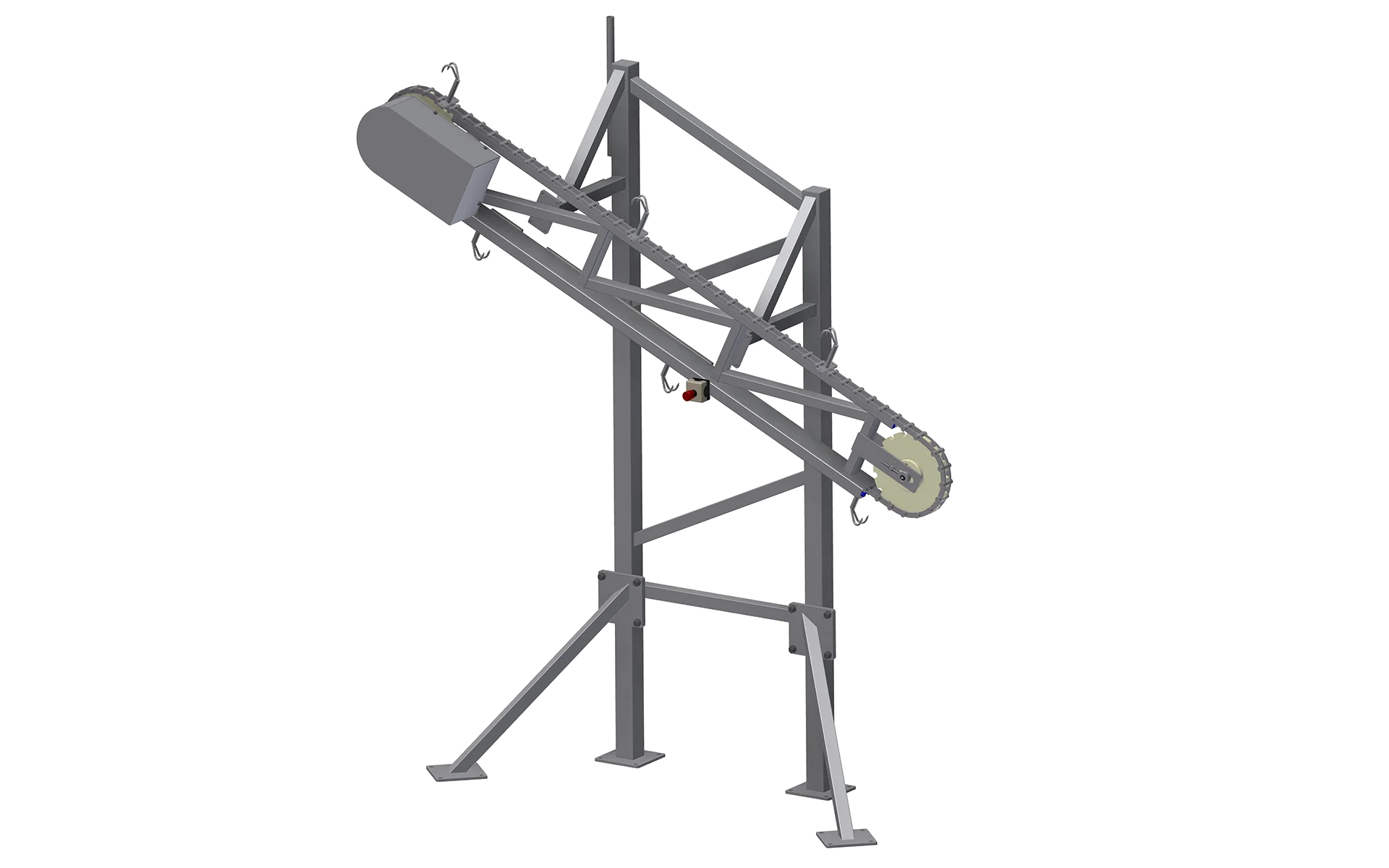

PAUNCH EMPTYING ELEVATOR
The Paunch Emptying Elevator is Specially designed to lift the Beef Paunches into the Paunch Washing-Cleaning Machine in an easy, efficient, and safe way. This will result in high yields and reduced worker fatigue.
With this Elevator it is possible to lift up to 100 Beef Paunches per hour.
The Paunch Emptying Elevator is manufactured from high quality stainless steel and other corrosion resistant materials. It is also supplied with an electric control panel including a Start/Stop and Emergency-stop button.
This durable and reliable Elevator is easy to use, to clean and to maintain. It has been carefully designed regarding ergonomics, food-safety requirements and CE-safety regulations.
All food process contact surfaces are in accordance with regulation (EC) 1935/2004.
SUPPLIED WITH
- Electrical Control Panel including Start/Stop and Emergency-stop Buttons
- Robust stainless-steel frame
- Stainless-steel conveyor chain with hanging hooks
- Electric motor
CAPACITY PER HOUR - PER CHARGE
| Beef Paunches | 100 Paunches per hour. |
TECHNICAL FEATURES
| Execution | AISI 304 stainless-steel and other corrosion resistant materials. |
| Dimensions | ±2.555mm x 910mm x 2.760mm (Length x Width x Height) |
| Installed Power | •3 Phase/50Hz •U=400V •P=0.25kW |
| Electro Technical Materials | In accordance with NEN-EN-IEC 60204-1_2006; IP-Classification: Motors IP55 – Switches IP65. |
