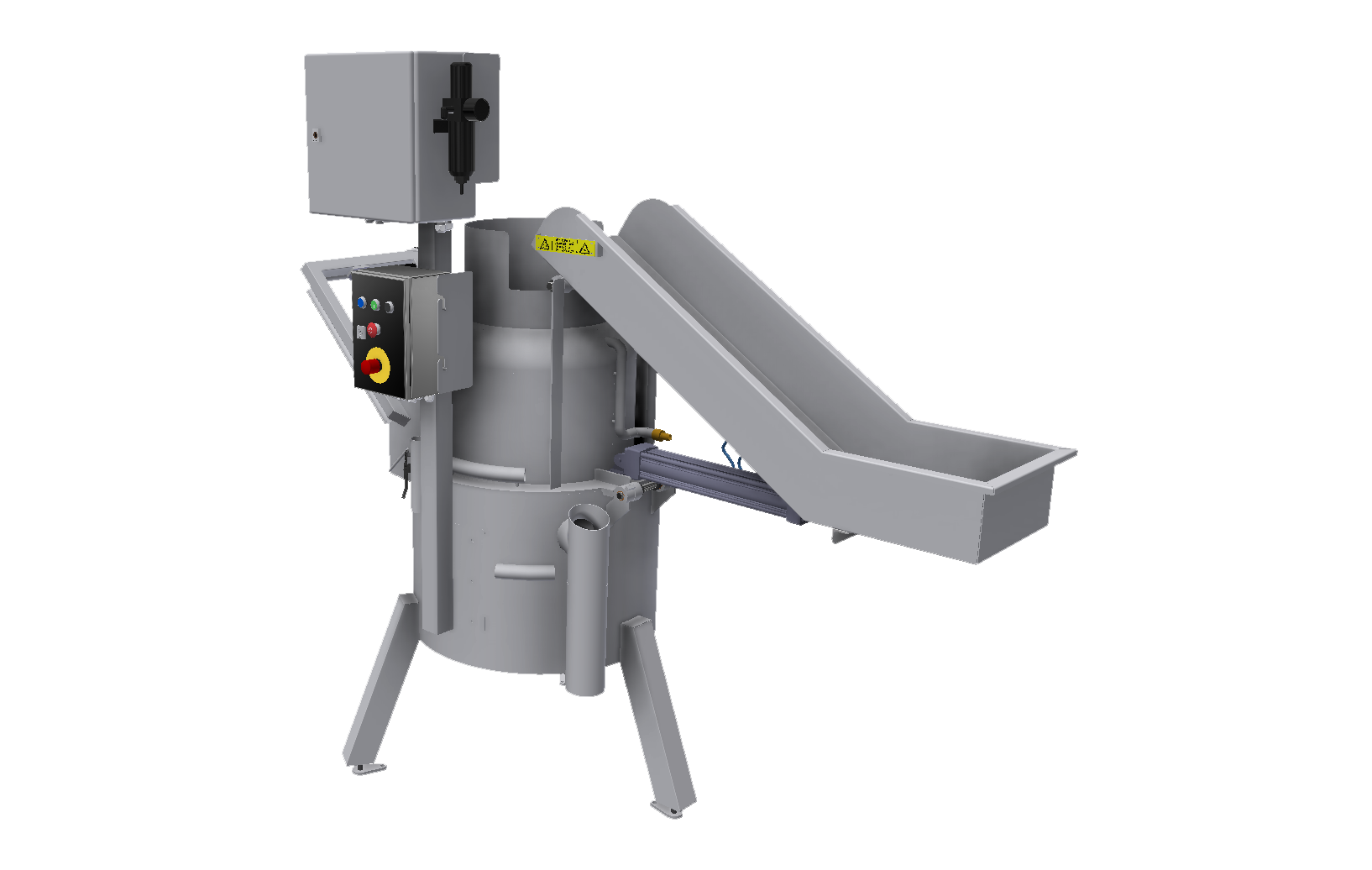

RED OFFAL WASHING – CLEANING MACHINE


TECHNICAL DETAILS

FOR MORE TECHNICAL DETAILS DOWNLOAD THE PRODUCT PDF

DOWNLOAD

TYPE : STM & STM-K Ø550 up to Ø1300

This Washing-Cleaning Machine is special designed for the washing and cleaning of Tongues, Lungs, Hearts, etc. (Red Offal) in an easy, efficient, and safe way, without damaging the Products. This will result in high yields and reduced worker fatigue.
The Washing-Cleaning Machine for Red Offal is available in different configurations. From manual operated to semi-automatic- and fully automatic operated, where number of washing cycles, -processing times and -intervals, can be easily adjusted. According to customer preferences can be chosen from various control and operating systems, for example: Siemens LOGO with operating push buttons or a PLC control, fully equipped with an environment-resistant touchscreen that can be specially adapted to customer requirements.
For the infeed of the Machine can be chosen from a basic funnel, a pneumatically controlled storage funnel, a pneumatically controlled tipper or an electrically controlled trolley/bin-lifter up to 300 liters, according to customer preferences.
In order to be able to clean this machine thoroughly and easily, it is equipped with a hinged upper part.
The models of the Washing-Cleaning Machine for Red Offal 550 and 750 series are equipped with a gas spring to ease opening and closing.

The upper part of the larger, heavier Machines of the 900 and 1000 series can be opened and closed pneumatically. Depending on the chosen control system, this can be performed semi-automatically by using a manually operated pneumatic valve, or fully electro-pneumatically controlled by operating a push button or touchscreen.
Regardless of customer-specific wishes, a working table and/or a wastewater separator can be supplied with this machine.
The Washing-Cleaning Machine for Red Offal is manufactured from high quality stainless steel and other corrosion resistant materials and is being supplied with an Electric Control Panel according to NEN-EN-IEC 60204-1, including Start/Stop Button, Emergency Stop button and a separate 3 color LED column to indicate the Machine status.

This durable and reliable Washing-Cleaning Machine for Red Offal is easy to use, to clean and to maintain. It has been carefully designed regarding ergonomics, food-safety requirements and CE-safety regulations.
All food process contact surfaces are in accordance with regulation (EC) 1935/2004.
