CASING CALIBRATING TABLE


TECHNICAL DETAILS

FOR MORE TECHNICAL DETAILS DOWNLOAD THE PRODUCT PDF

DOWNLOAD

The Casing Calibrating Table is special designed to accurately calibrate the casings with great comfort and ease, in an efficient and safe way, without damaging the Casings. It is equipped with an ergonomically arranged intuitive sorting tap, an adjustable Stainless Steel Calibration Block and a special safety-cutting facility. This will result in higher yields.

This Casing Calibrating Table is also available in a double version. With this version calibration can be performed with two persons (In Opposite direction-Face to Face) at double capacity. It is equipped with two ergonomically arranged intuitive sorting taps, two adjustable Stainless Steel Calibration Blocks and two special safety-cutting facilities.

The Casing Calibrating Table is manufactured from high quality stainless-steel and other corrosion resistant materials.

This durable and reliable Casing Calibrating Table is easy to use and to clean. It has been carefully designed regarding ergonomics, food-safety requirements and CE-safety regulations.

All food process contact surfaces are in accordance with regulation (EC) 1935/2004.

TECHNICAL ILLUSTRATIONS

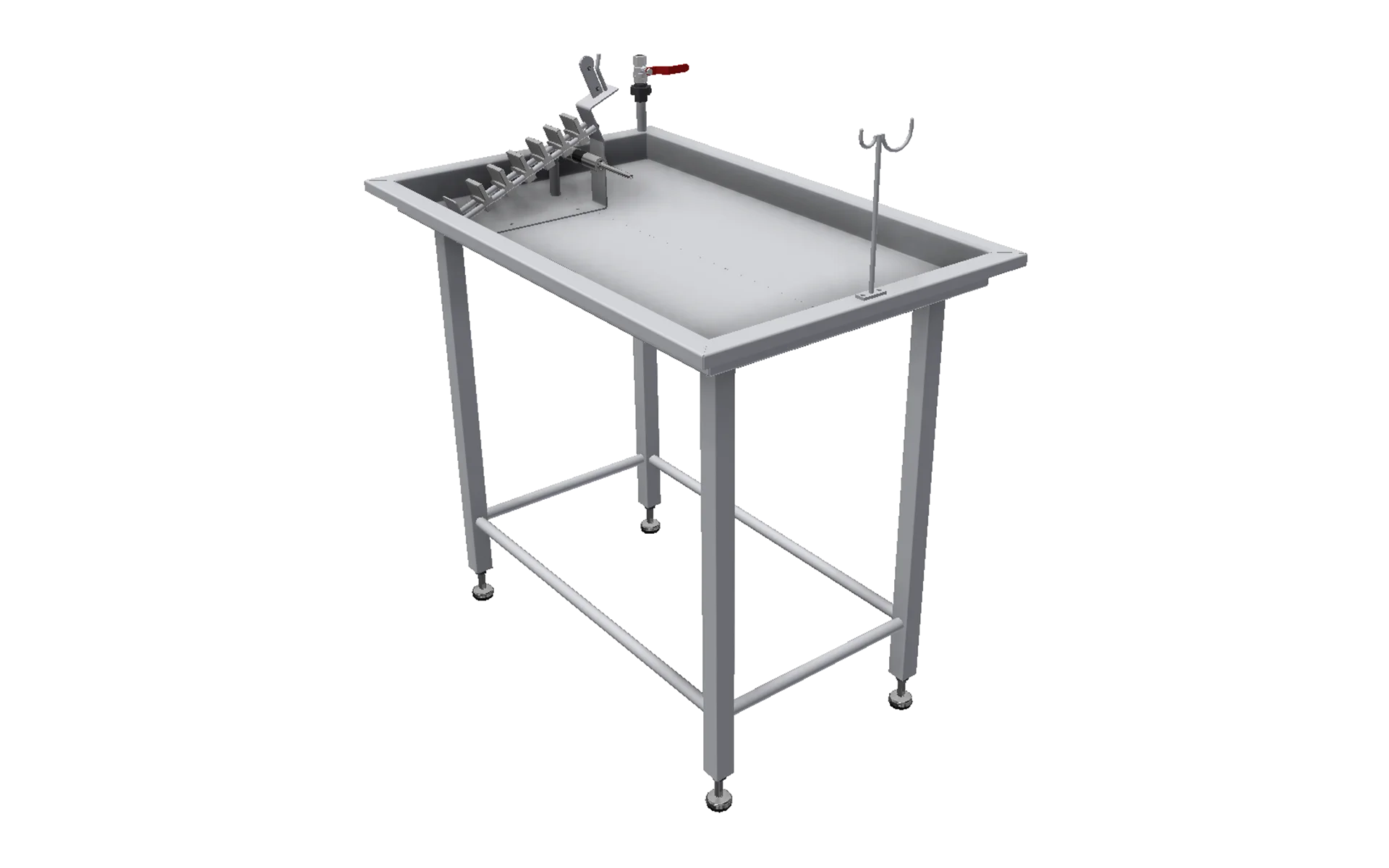

CASING CALIBRATING TABLE

SUPPLIED WITH

  • Stainless-steel base with worktable top
  • Safety-cutting facility
  • Adjustable Stainless Steel calibration block
  • Intuitive sorting tap

TECHNICAL FEATURES

Execution AISI 304 stainless-steel and other corrosion resistant materials.
Dimensions Single Table ±1.090mm x 690mm x 1.250mm (Length x Width x Height)
Dimensions Double Table ±2.100mm x 1.300mm x 1.250mm (Length x Width x Height)
