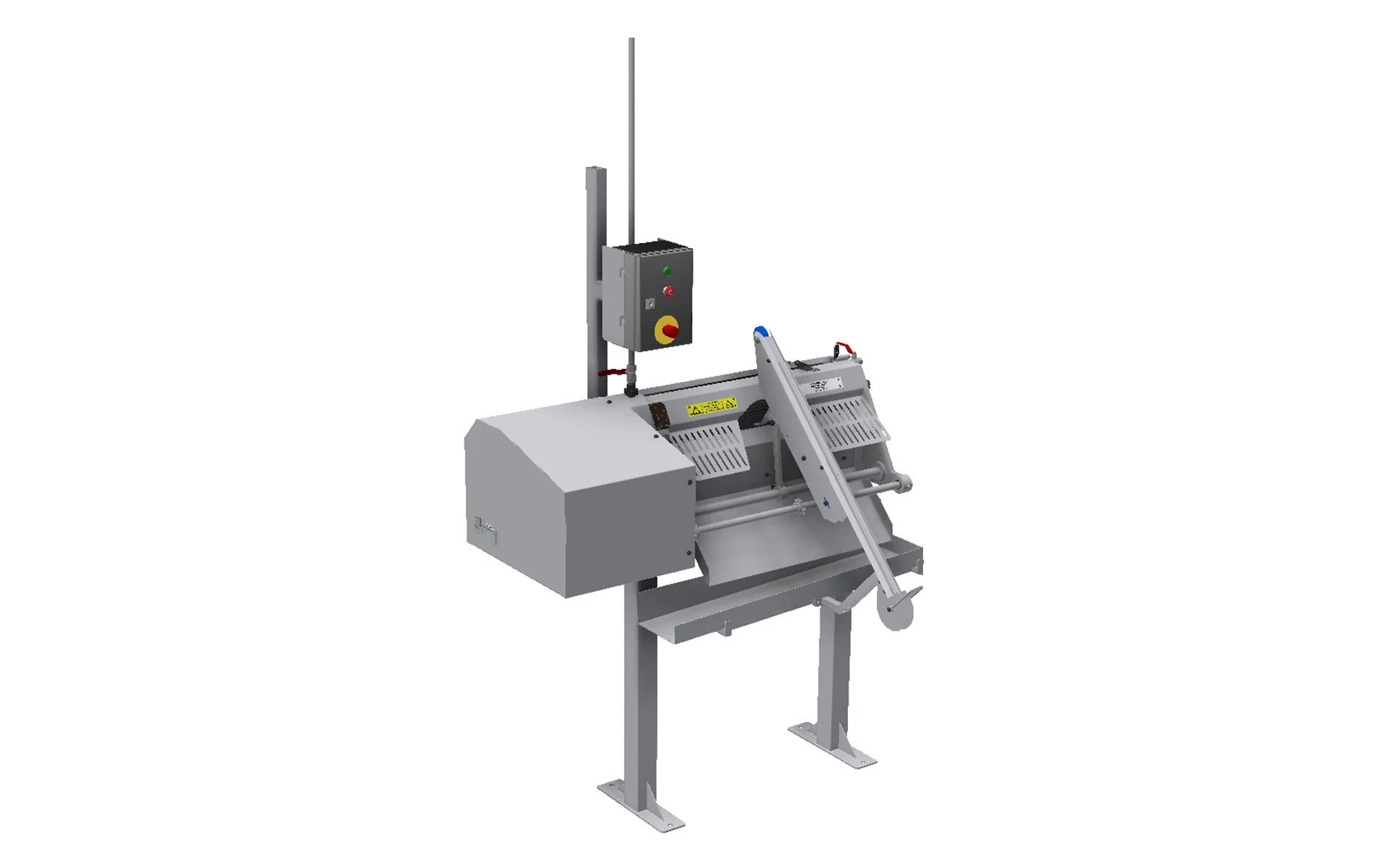

MANURE STRIPPER MACHINE
The Manure Stripper Machine is special designed for cleaning squeeze by rubber rollers) the Manure and Mucus from the Hog Casing, Sheep Casings or the Beef Rounds in an easy, efficient and safe way without damaging the Casings.
The capacity of the Manure Stripper Machine depends on the length of the rollers present in the Machine Unit. The length of the rollers in a Manure Stripper Machine can vary from 600 up 1800 mm.
The capacity is up to 900 Hog Casings or 900 Sheep Casings or 220 Beef Rounds per hour.
The Manure Stripper Machine is manufactured from high quality stainless steel and other corrosion resistant materials. It is also supplied with an electric control panel including a Start/Stop and Emergency-stop button.
This durable and reliable Manure Stripper Machine is easy to use, to clean and to maintain. It has been carefully designed regarding ergonomics, food-safety requirements and CE-safety regulations.
All food process contact surfaces are in accordance with regulation (EC) 1935/2004.
SUPPLIED WITH
- Electrical Control Panel (CE-Norm NEN-EN-IEC 60204-1) including a Start/Stop and Emergency-stop button.
- Electric motor
- Rollers
- Feeding Conveyor
- Stainless-steel chute
TECHNICAL FEATURES
Execution | AISI 304 stainless-steel and other corrosion resistant materials. |
Dimensions | Length x Width x Height > Depending on the Capacity Demand. |
Installed Power | •3 Phase/50Hz •U=400V •P=0.37kW |
Electro Technical Materials | In accordance with NEN-EN-IEC 60204-1_2006; IP-Classification: Motors IP55 – Switches IP65. |
